Technical Advantages
- Adopt advanced high frequency inverter power supply technology, frequency up to 20KHZ, fast dynamic response.
- Strong resistance to power grid fluctuations, 40% less electricity than traditional welding machines. The design of high-frequency pressurized arc ignition and thermal ignition is adopted. The arc starting performance is excellent, and the arc starting success rate is 100%.
- One machine for dual purposes, with manual welding function, especially suitable for spot welding process, spot welding arc starts quickly.
- With overheating, overcurrent, overvoltage automatic protection function, good safety performance.
- With unique output characteristic design, it can weld almost all metal materials, which is more suitable for filler wire welding, and the weld seam is beautifully formed.
- Small size, light weight, high efficiency and energy saving.
Technical Parameter

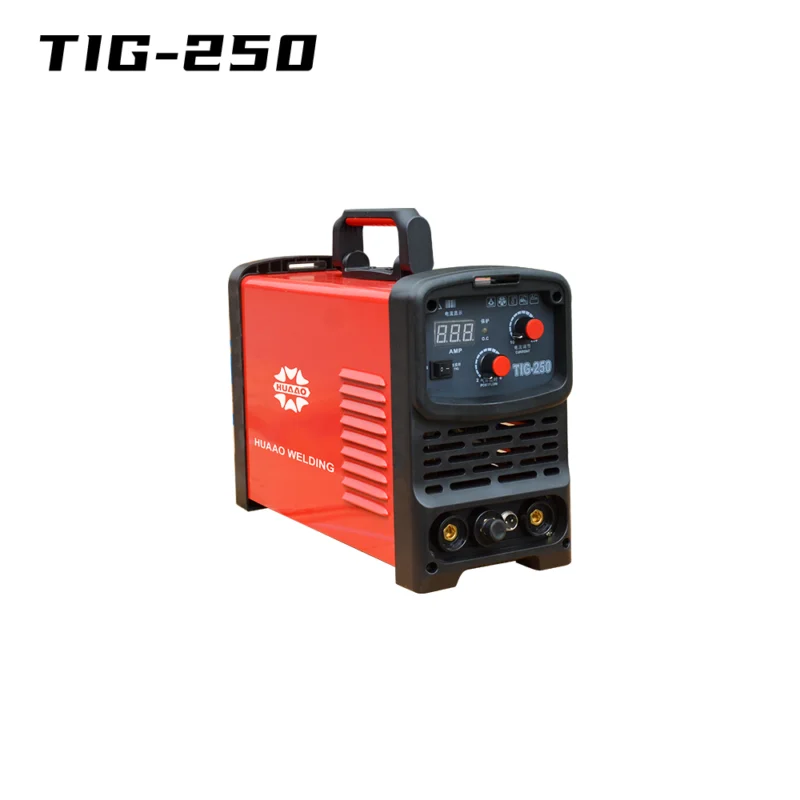

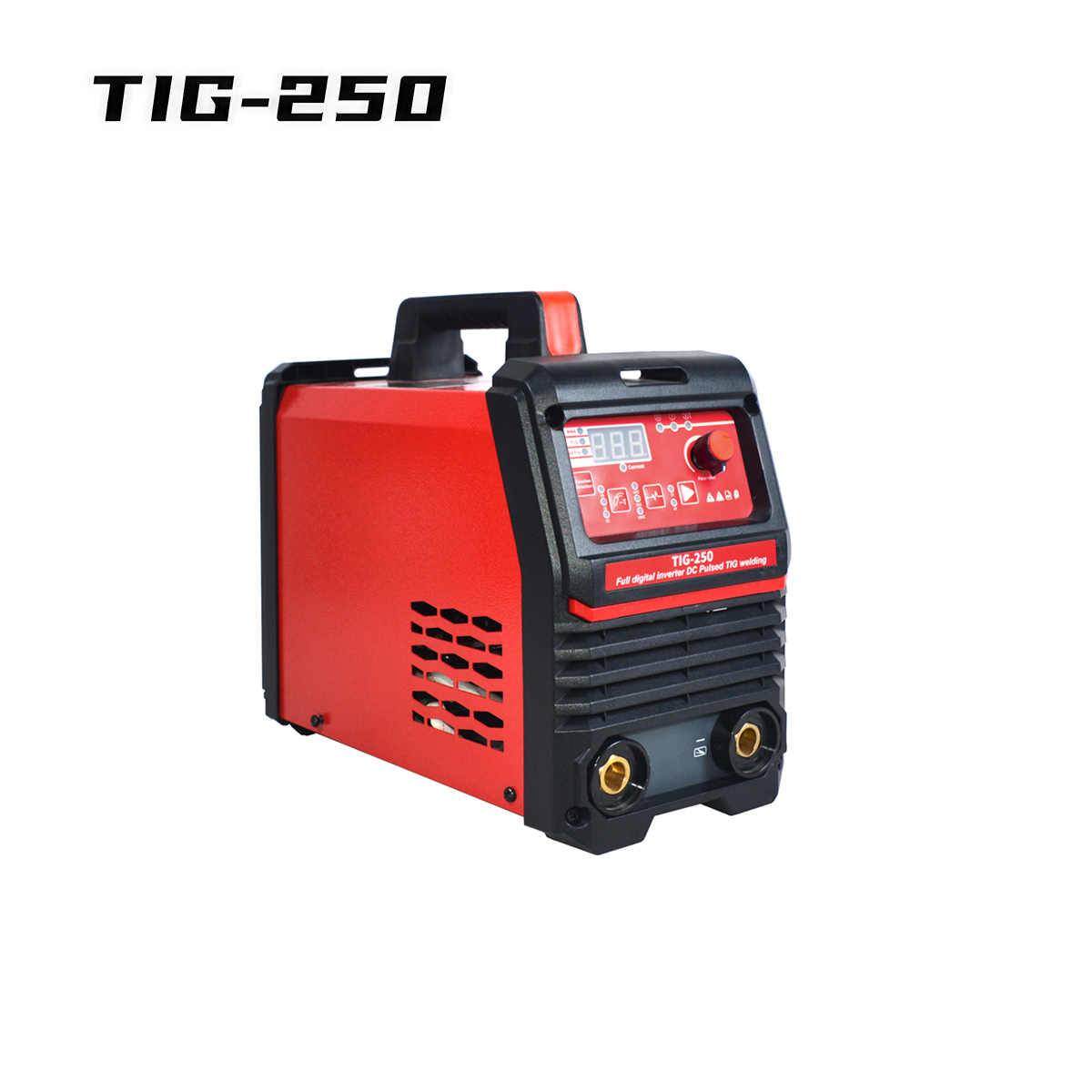

| Model | TIG-200S | TIG-200 | TIG-250S | TIG-250 | |
|---|---|---|---|---|---|
| Voltage range (V) | 1-Phase220±15% | ||||
| Frequency(HZ) | 50/60HZ | ||||
| Rated input power (KVA) | 3.1 | 3.5 | 3.9 | 4.2 | |
| Rated input current (A) | 22.8 | 25 | 28 | 30 | |
| No-load voltage (V) | 57 | ||||
| Working current range (A) | Argon arc welding | 20-150 | 20-160 | 20-180 | 20-190 |
| Arc welding | 20-150 | / | 20-180 | / | |
| Arc ignition method | High frequency | ||||
| Rated duty cycle (%) | 60 | 60 | |||
| Weight (Kg) | 7.3 | ||||
| External dimensions (mm) | 395*160*265 | ||||
