Production Video
Technical Advantages
- Direct current welding output.
- 1-Phase input power.
- IGBT technology for stick welding.
- Manual adjustable welding arc.
- Output digital display.
- Hot start lets you start welds easily.
- ARC Force monitors the voltage and provides additional current when needed.
- Anti-stick technology allows the user to easily separate the electrodes from the workpiece.
- Power Switch lights up to tell you the power is on.
- Thermal overload protection with indicator light.
- High welding current stability for consistent output.
- DC current out provides stable output for good penetration.
Technical Parameter

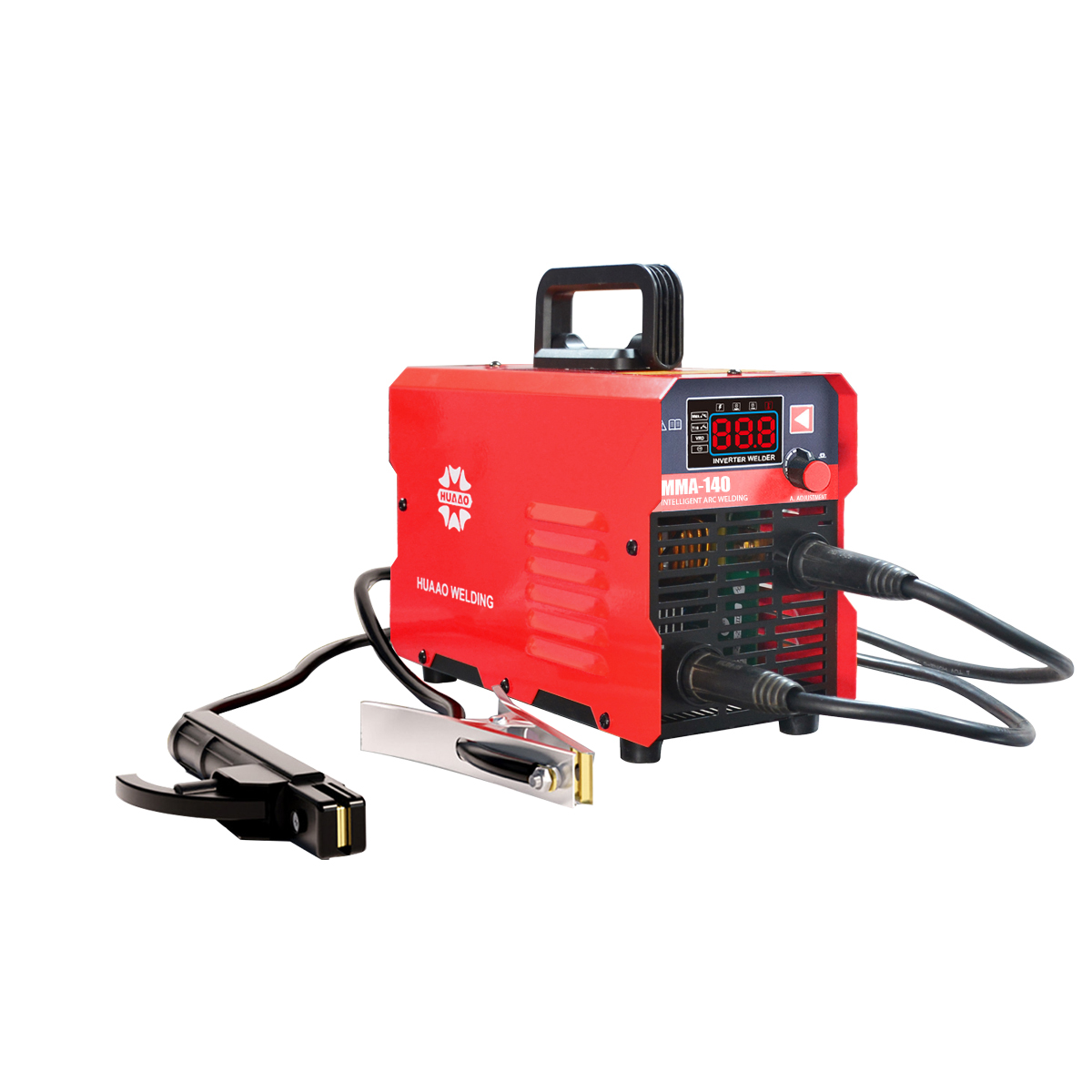

| Model | MMA-140 |
| Voltage range (V) | 1 phase 220V±15% |
| Frequency(HZ) | 50/60HZ |
| Rated input power (KVA) | 4.3 |
| Rated input current (A) | 34 |
| No-load voltage (V) | 57 |
| Working current range(A) | 30-140 |
| Weld stick (mm) | 2.5-3.2 |
| Rated duty cycle (%) | 20 |
| Weight (Kg) | 2.85 |
| External dimensions (mm) | 295*132*220 |

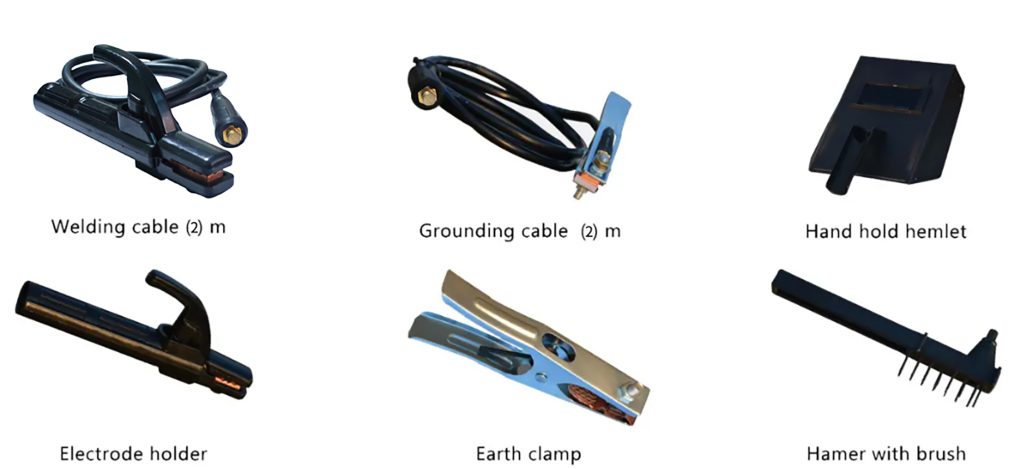

Product Accessories
