Technical Advantages
- One-click electrode selection mode.
- Auto voltage detection and conversion.
- Welding current:precise to 1 amp adjustment.
- Intelligent fan control: Auto fan off after 6min idle.
- VRD low-voltage technology ensures the safety and reliability.
- Thrust current: Maintains arc stability even in 100m output cables.
- 3-second short circuit protection: auto power cutoff if no arc forms
- Start current:continuously variable,providing markedly enhanced arc initiation.
- Power-saving design with auto shutoff (5s no-arc) for safe and reliable operation.
Technical Parameter

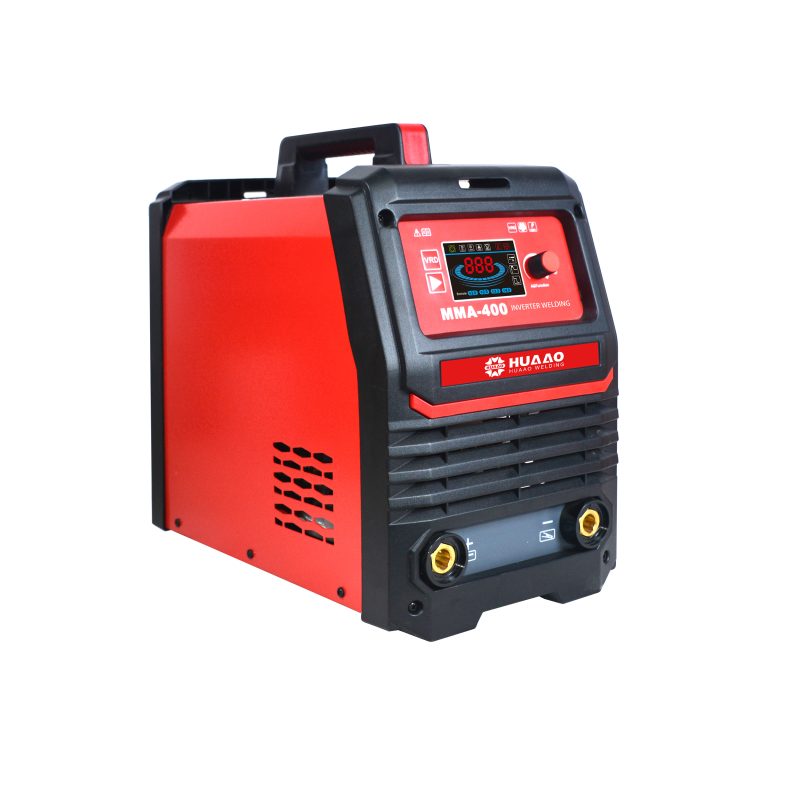

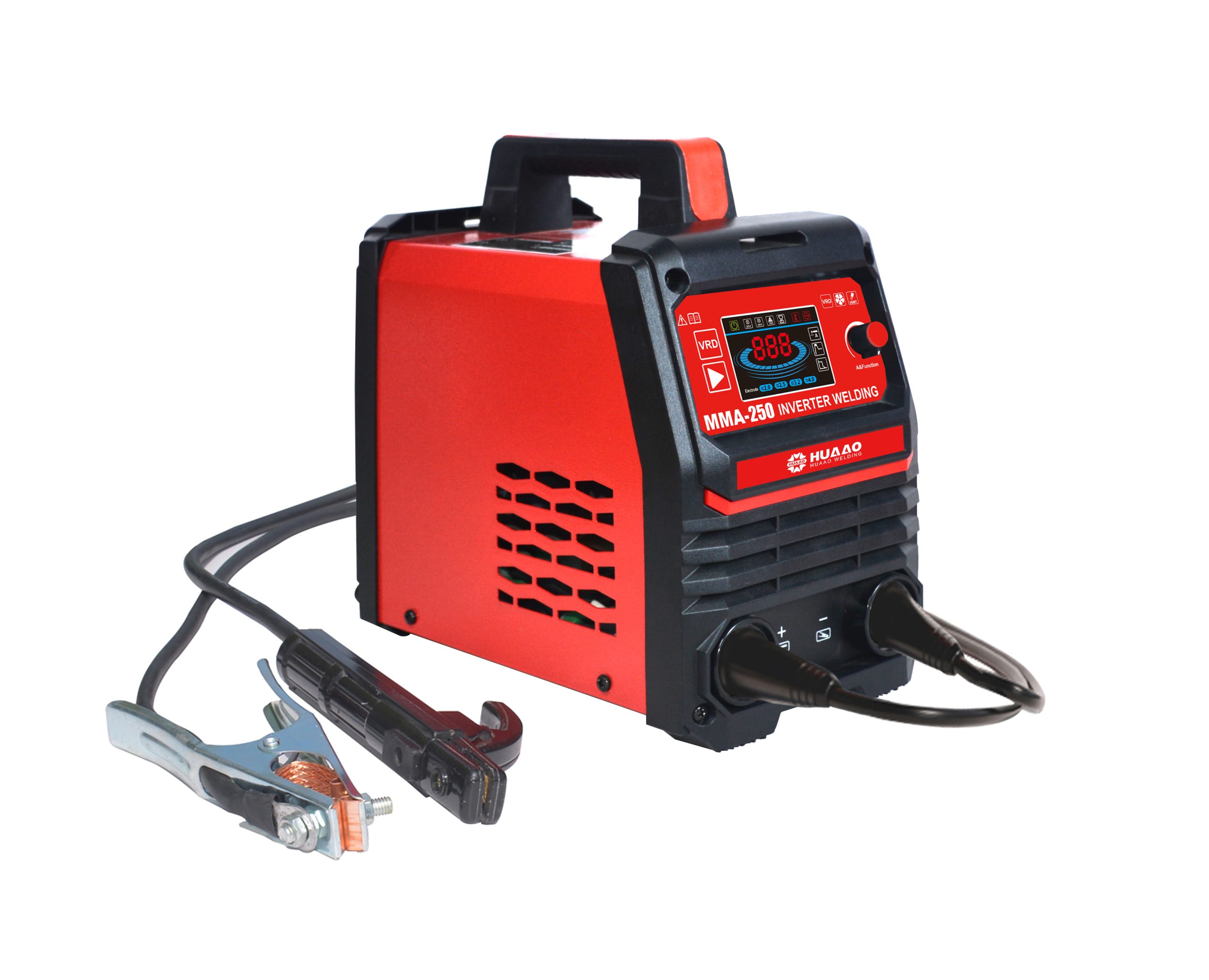

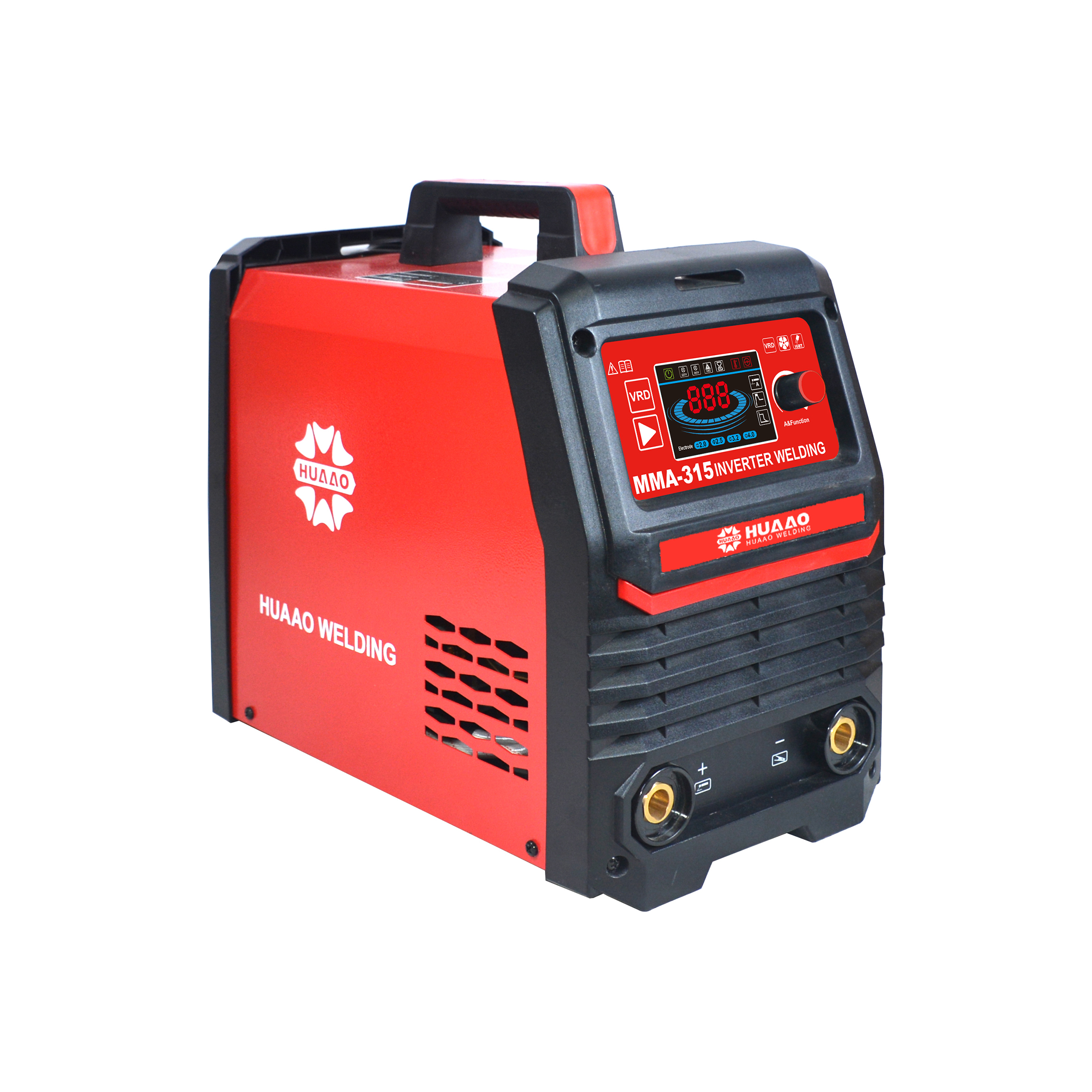

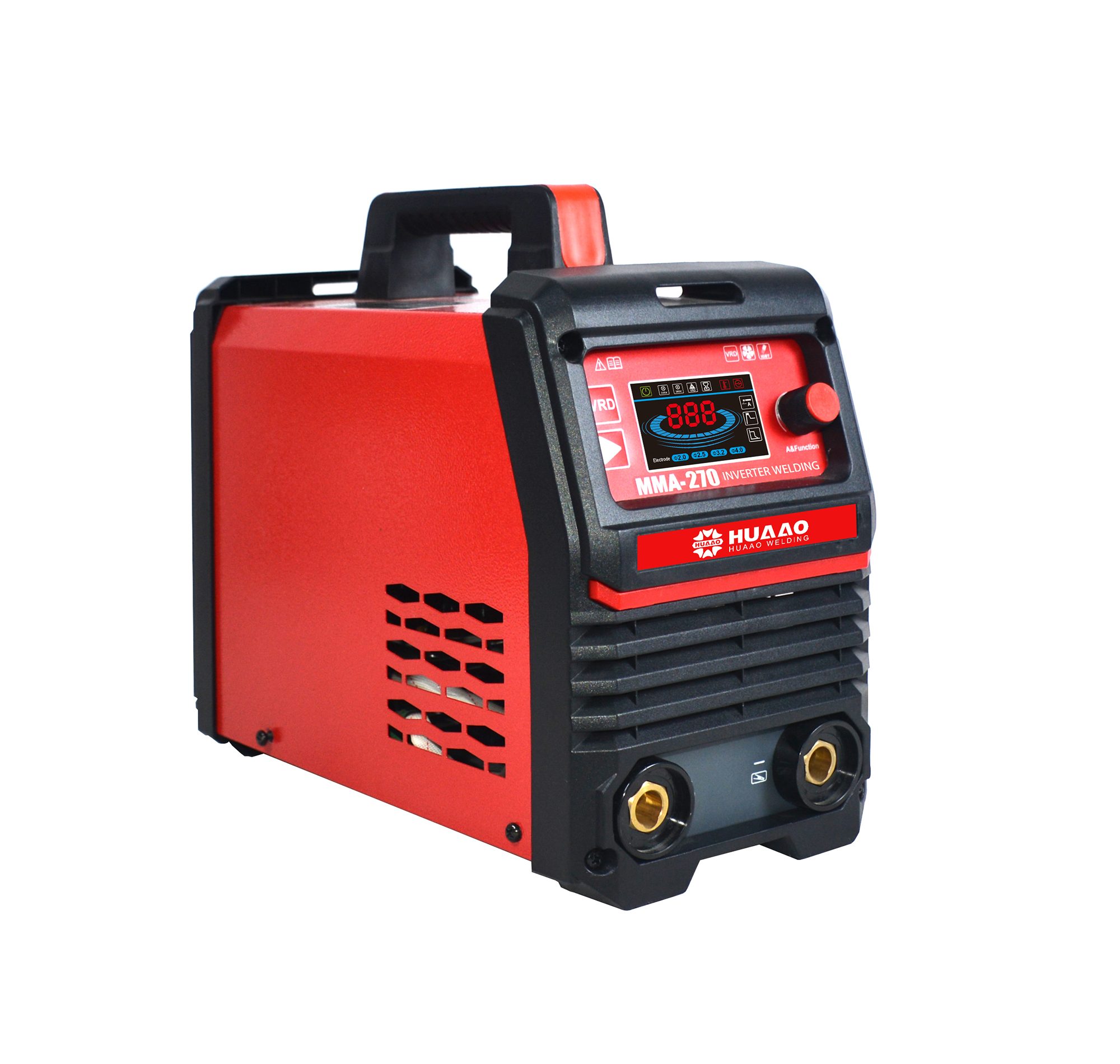

| Model型号 | MMA-250 | MMA-270 | MMA-315 | MMA-400 | |
| Rated input Voltage(V)额定输入电压(V) | AC 1-Phase220/380±15% 50/60HZ | ||||
| Rated input power (KVA)额定输入功率(KVA) | 220 | 4.3 | 5 | 5.6 | 6 |
| 380 | 5.2 | 5.4 | 6 | 9 | |
| Rated input current (A)额定输入电流(A) | 220 | 34 | 37 | 43.6 | 43.6 |
| 380 | 20 | 21 | 23 | 17.5 | |
| No-load voltage (V)空载电压(V) | 220 | 74 | |||
| 380 | 60 | ||||
| Welding current range(A)焊接电流调节范围(A) | 220 | 20-150 | 30-170 | 20-190 | 20-190 |
| 380 | 20-150 | 30-170 | 20-190 | 20-260 | |
| Thrust/arc start current range(A)推力/起弧电流调节范围（A） | 0-100 | ||||
| Machine efficiency整机效率 | 85 | ||||
| Weld Stick适用焊条（mm） | 2-3.2 | 2-3.2 | 2-4.0 | 2-5.0 | |
| Rated load duration (%)额定负载持续率(%) | 40 | ||||
| Enclosure ingress protection 外壳保护等级 | IP21S | ||||
| Weight (Kg)重量(Kg) | 3.85 | 4.25 | 6.75 | 8.55 | |
| External dimensions (mm)产品外观尺寸(mm) | 280*151*268 | 340*160*286 | 385*210*355 | 425*225*386 | |
| Package dimensions(mm)包装尺寸(mm) | 350*230*315 | 405*255*360 | 470*285*435 | 495*305*465 | |
Product Accessories
