Technical Advantages
- Using single-tube IGBT high-frequency inverter technology, the output power is large, stable and reliable.
- Wire detection function, dry extension length 20mm, easy to start arc.
- Current/Voltage digital display preset function, easy to match welding parameters.
- Gas shielded welding/Stick welding dual-purpose function setting, constant current/constant voltage output.
- Arc hardness adjustment, suitable for different materials and process requirements.
- Application of leading anti-splash control circuit, small spatter, uniform shape, beautiful appearance good arc ignition reliability, suitable for fast spot welding.
- Stable welding with fine wire and small current, especially suitable for thin plate welding, the thinnest 0.5mm plate non breakdown.
- 0.8mm welding wire thin plate has excellent spot welding performance.
- Digital operation interface, intuitive and convenient operation.
Technical Parameter

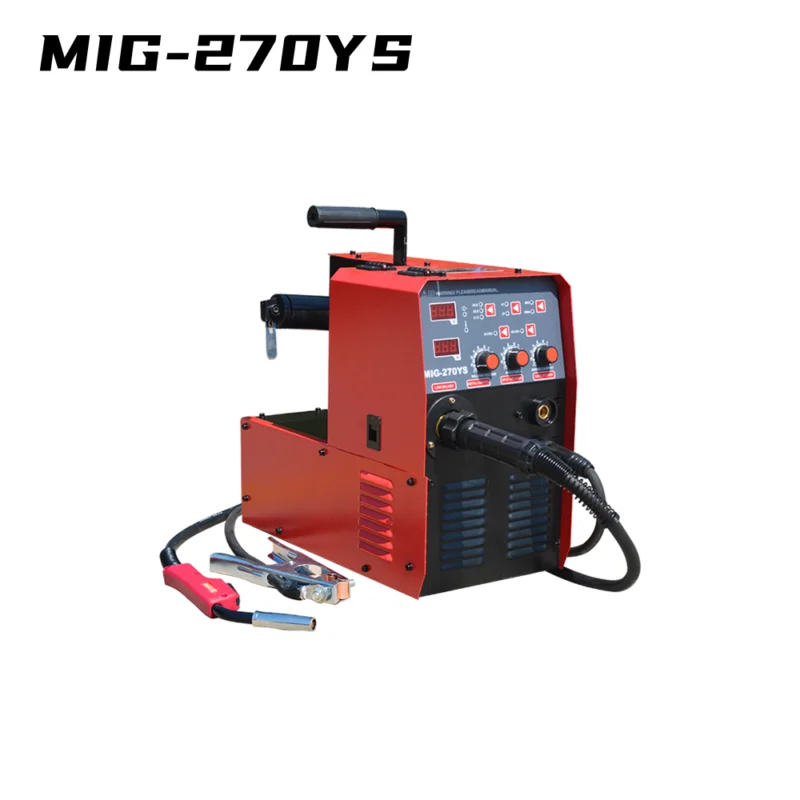

| Model | MIG-270 | MIG-270YS | ||||
|---|---|---|---|---|---|---|
| Voltage range (V) | 1~220V±15% | 3~380±15% | 1~220V | 1~220V±15% | 3~380±15% | 1~220V |
| 3~380±15% | 3~380±15% | |||||
| Frequency(HZ) | 50/60HZ | |||||
| Rated input power (KVA) | 6.6 | 9 | 6.6/9 | 6.6 | 9 | 6.6/9 |
| Rated input current (A) | 45 | 16 | 45/16 | 45 | 16 | 45/16 |
| No-load voltage (V) | 67 | |||||
| Voltage adjustment range (A) | 40-200 | 40-270 | 40-200/40-270 | 40-200 | 40-270 | 40-200/40-270 |
| Welding Wire (mm) | 0.6/0.8/1.0 | |||||
| Weld stick (mm) | 2-3.2 | |||||
| Wire feed speed(m/min) | 24 | |||||
| CO2 Gas flow capacity | 45214 | |||||
| Rated duty cycle (%) | 60 | |||||
| Weight (Kg) | 19 | 22 | ||||
| External dimensions (mm) | 470*250*460 | 480*250*500 | ||||
