Technical Advantages
- Using single-tube IGBT high-frequency inverter technology, the output power is large, stable and reliable.
- Flux cored /Stick /TIG welding function setting, constant current/constant voltage output.
- Wire detection function, dry extension length 20mm, easy to start arcing.
- Current/Voltage digital display preset function, easy to match welding parameters.
- Arc hardness adjustment, suitable for different materials and process requirements.
- Applying leading anti-splash control circuit,small spatter, uniform shape,beautiful appearance .
- Especially suitable for thin sheet welding, even the thinnest 0.5mm no burn-through.
- Excellent spot welding performance for 0.8mm Welding stick sheet .
- Good arc ignition reliability, suitable for fast spot welding.
- Built-in manual welding VRD anti-shock function.
- Digital operation interface, intuitive and convenient operation.
Technical Parameter

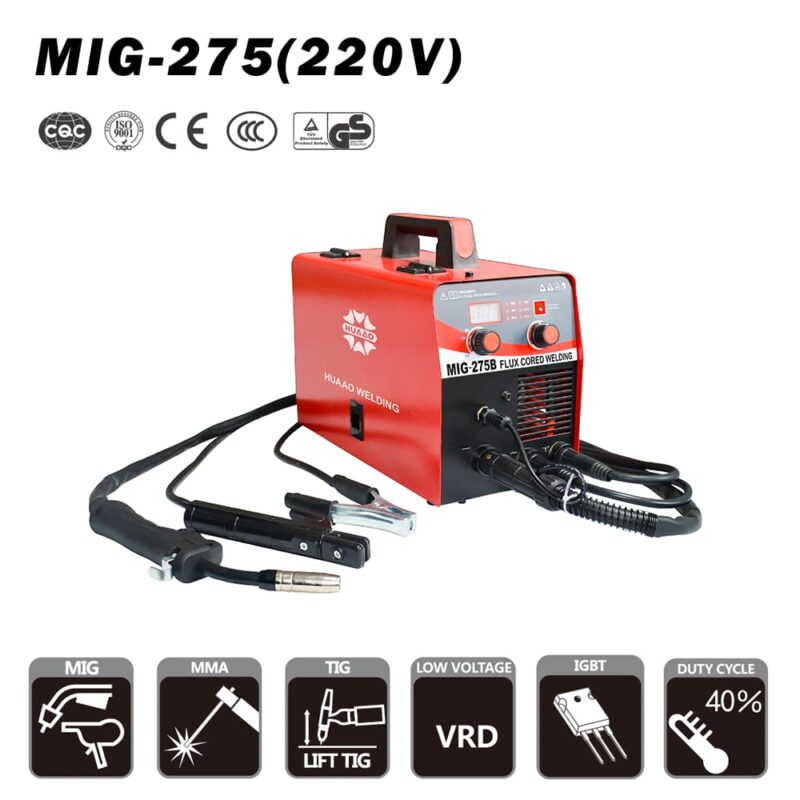

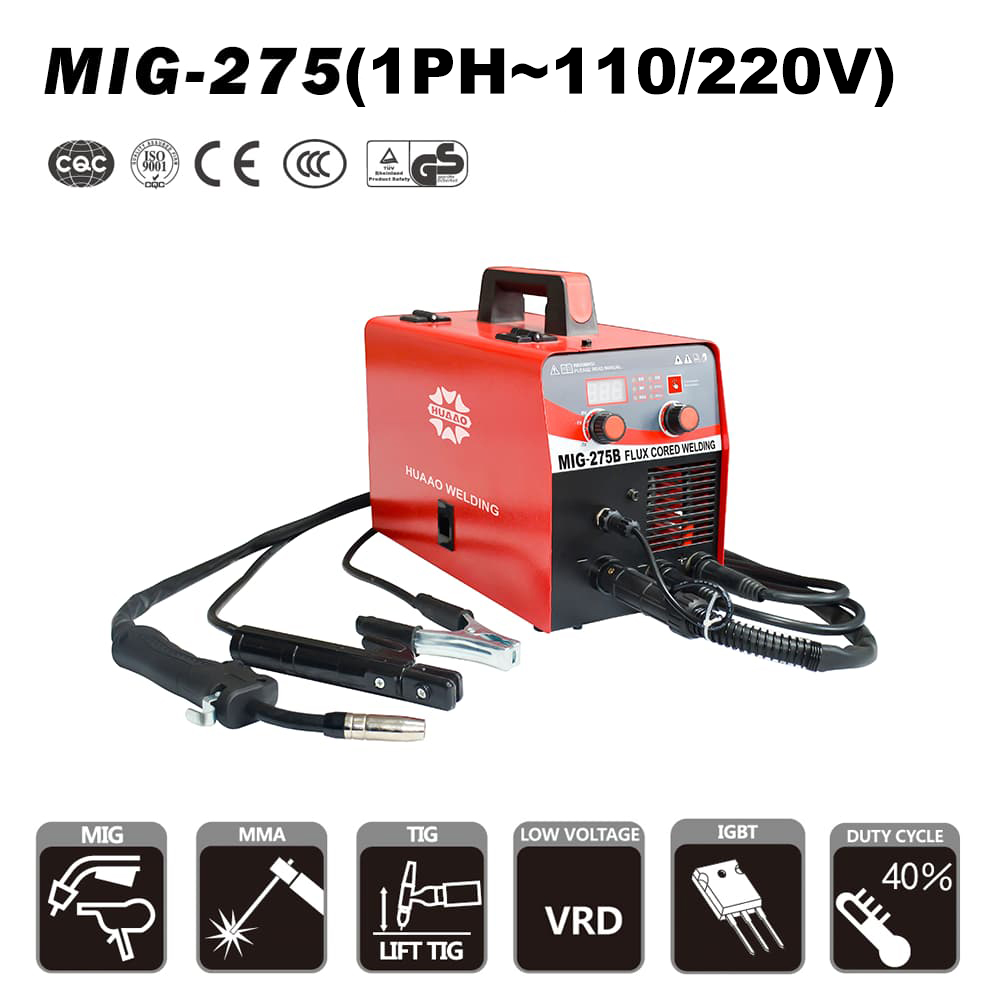

| Model | MIG 275B |
| Input Voltage(V) | 1phase 220V±15% |
| Frequency(HZ) | 50/60HZ |
| Rated input power (KVA) | 3.2 |
| Rated input current (A) | 24.4 |
| No-load voltage (V) | 55 |
| Welding current range (A) | MMA: 50-120 MIG: 50-120 |
| Working voltage range(V) | 16.5-20 |
| Weld stick (mm) | 0.8-1.0 |
| Welding rod (mm) | 2.0-3.2 |
| Rated load duration (%) | 40% |
| Flux cored wire | 1 kg / 5 kg |
| Weight (Kg) | 5.4 |
| External dimensions (mm) | 385*193*300 |
