Technical Advantages
- Soft-switching IGBT full-bridge inverter technology, double closed-loop current control (UC3846).
- Droplet transition waveform control technology (electronic inductance), freely adjustable arc shape, suitable for various welding requirements.
- The main transformer adopts ultra-fine crystal iron core, the inverter frequency up to 20KH.
- Passive power factor correction technology high power factor input voltage range 320V-450V.
- Arc starting and falling ball function, slow wire feeding for arc starting, high success rate of arc starting, less spatter, fast arc starting speed.
- High-power wire feeding system power supply, even in the case of large wire feeding resistance and long cable, it can feed wire stably.
- With self-locking/non-self-locking selection function, it is convenient for long-time welding operation.

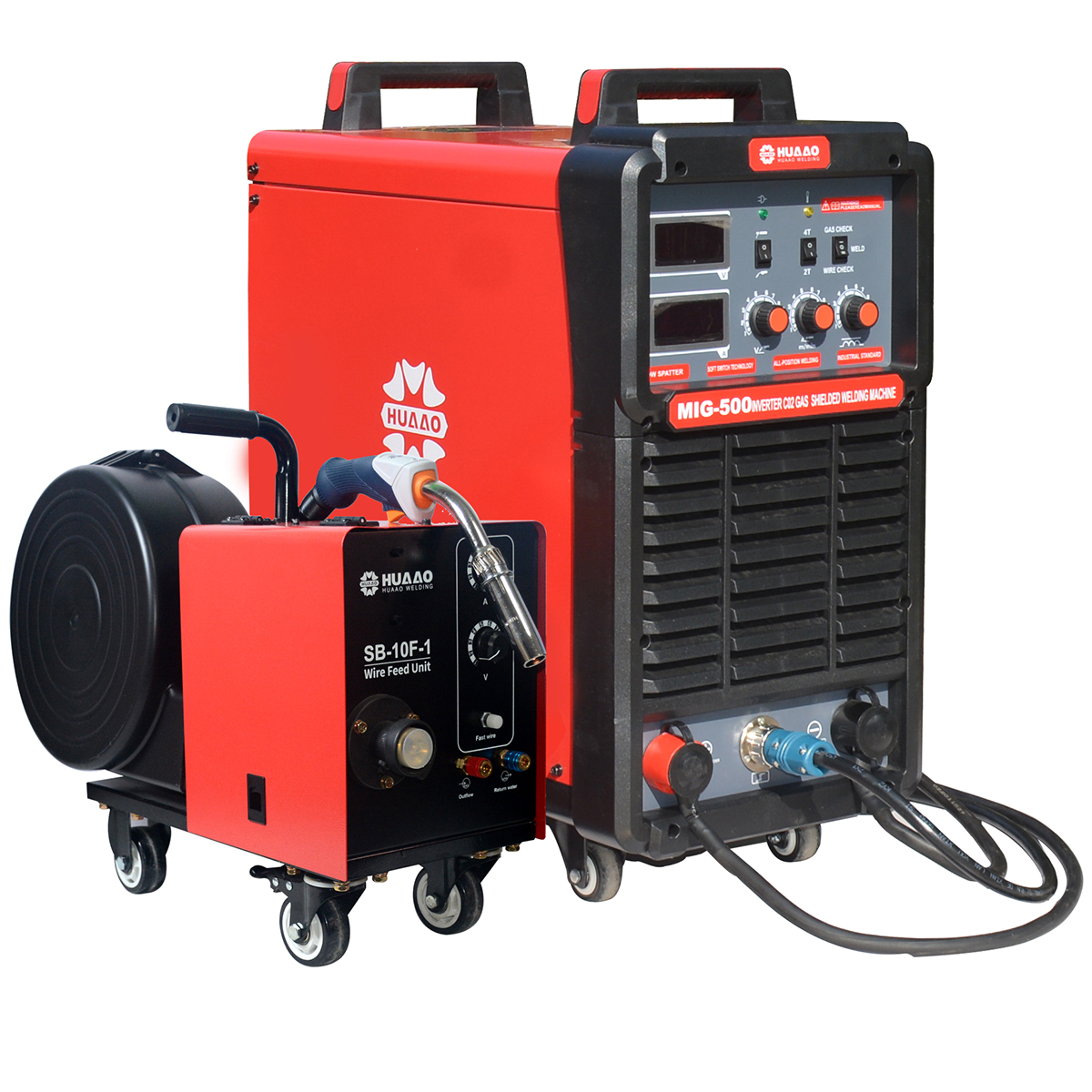

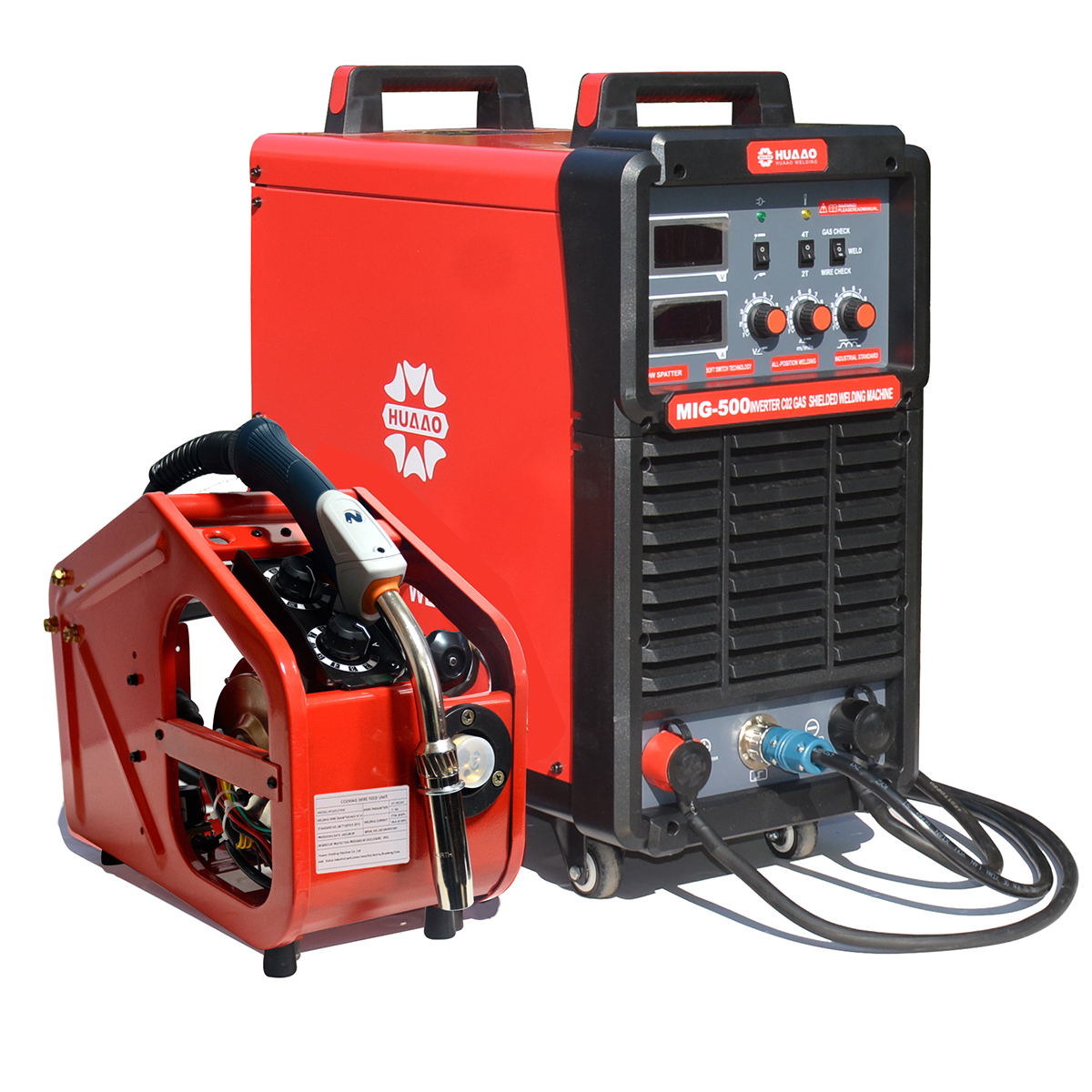

- The split type wire feeder cable can be extended to 50m, which is suitable for large-scale movement.
- With over-current and over-heat protection function, full digital current and voltage display.
- Three-purpose machine for gas protection and manual welding of steam turbines (Model 500/630).
Technical Parameter

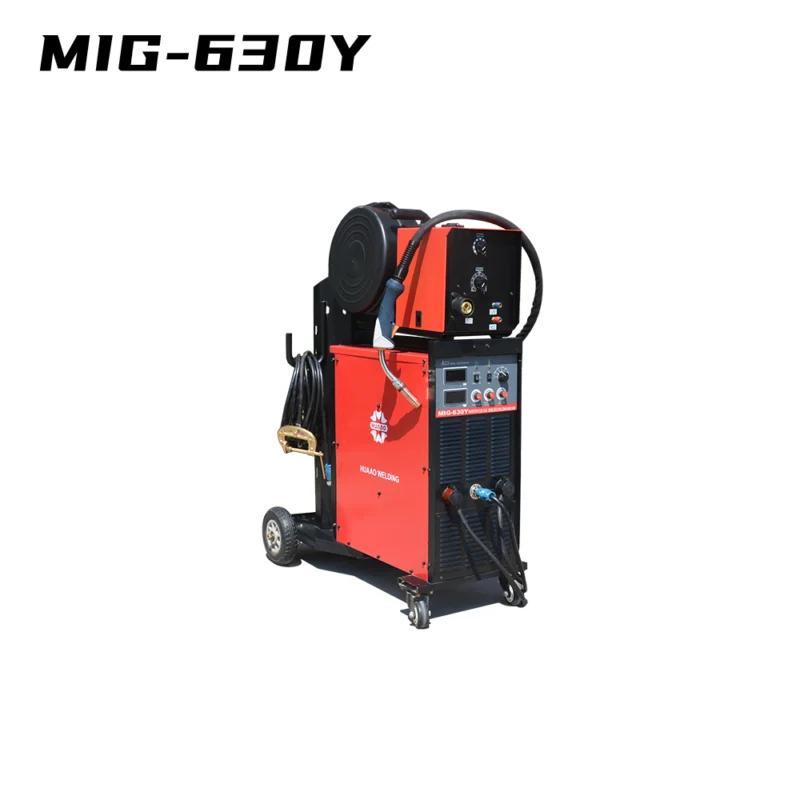

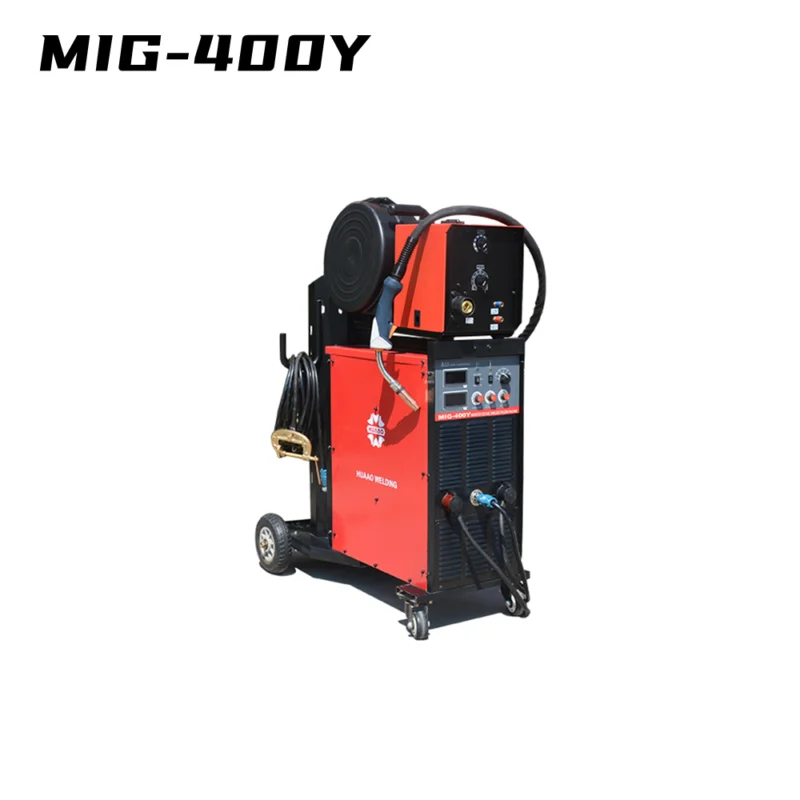

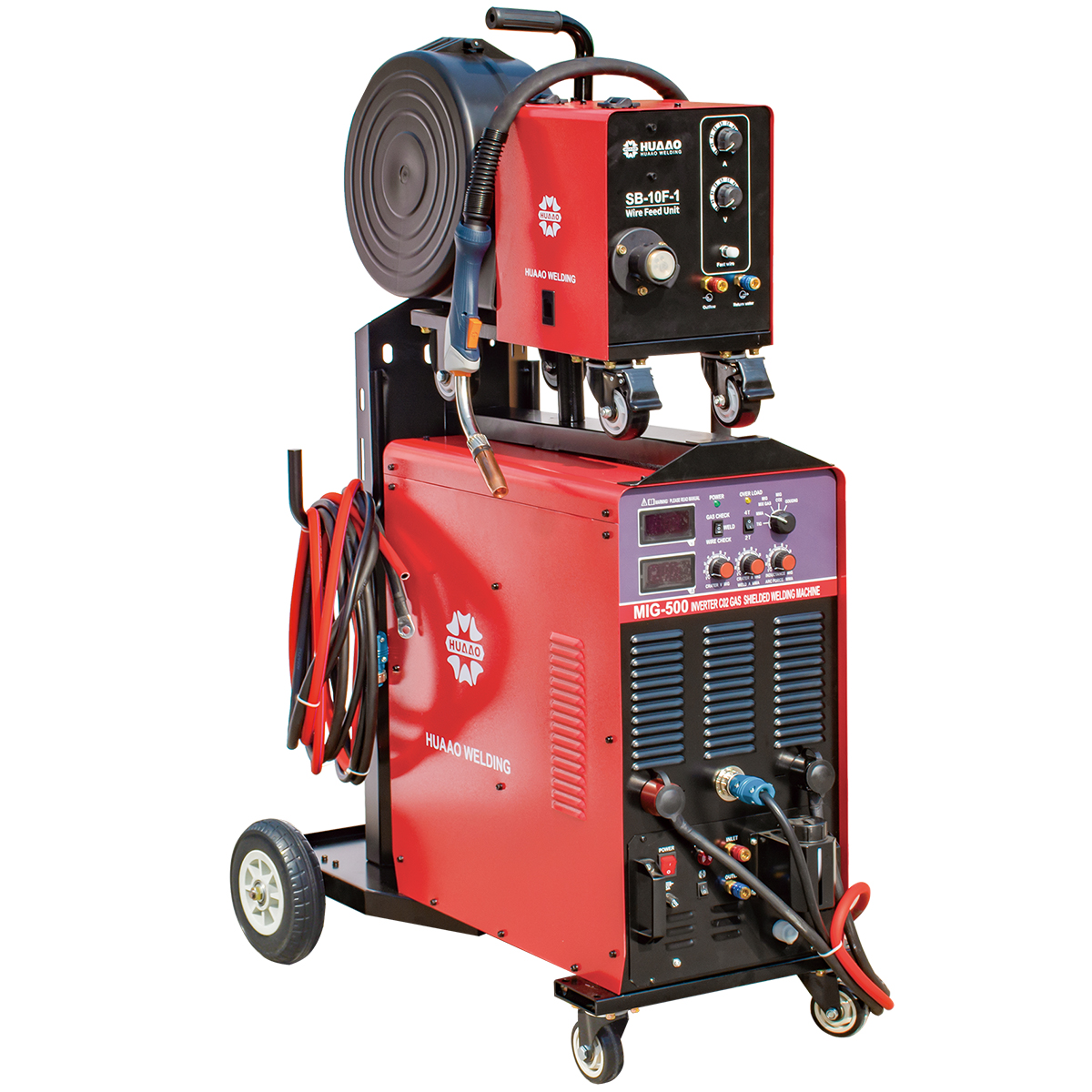

| Model | MIG-400Y | MIG-500Y | MIG-630Y |
|---|---|---|---|
| Voltage range (V) | 3-Phase380±15% 50/60HZ | ||
| Rated input power (KVA) | 15.9 | 24.5 | 33 |
| Rated input current (A) | 27 | 39 | 55 |
| No-load voltage (V) | 80 | 87 | 87 |
| Current adjustment range (A) | 60-400 | 60-500 | 60-630 |
| Voltage adjustment range (V) | 15.7-31.5 | 15.7-39 | 15.7-44 |
| Wire feeding speed (m/min) | 18 | ||
| CO2 gas flow (L/min) | 15-20 | ||
| Weld stick (mm) | 0.8-1.2 | 0.8-1.6 | 0.8-1.6 |
| Rated load duration (%) | 60 | ||
| Weight (Kg) | 65.5 | 67.5 | 70.5 |
| External dimensions (mm) | 945*513*1040 | ||
| Remark: 3~220V/415V/440V can be customized | |||
