Technical Advantages
- Advanced IGBT Soft-Switching Full-Bridge Inverter Technologywith UC3846-based double closed-loop current control.
- Precise Droplet Transition & Waveform Control Technology (electronic inductance simulation) enabling freely adjustable arc characteristics for diverse welding requirements.
- High-Frequency Power Conversion: Main transformer utilizes ultra-fine grain iron core, enabling inverter frequencies up to 20 kHz.
- Efficient Input Stage: Passive Power Factor Correction (PFC) ensures high power factor with a wide input voltage range (320V-450V).
- Optimized Arc Performance: Features slow wire feed arc starting and anti-sticking functions. Delivers high arc starting success rate, minimal spatter, and fast ignition.
- Robust Wire Feeding: High-torque wire feed motor system ensures stable feeding even under high resistance or with long cables (up to 50m with optional split feeder)
- Enhanced Usability: Selectable self-locking / non-self-locking trigger function facilitates extended welding operations
- Comprehensive Protection & Monitoring: Integrated over-current and over-temperature protection. Full digital display for real-time current and voltage monitoring
- Versatile Application: Triple-function design supports gas-shielded welding, manual electrode (MMA), and specialized turbine maintenance welding (Models 500/630).
Technical Parameter

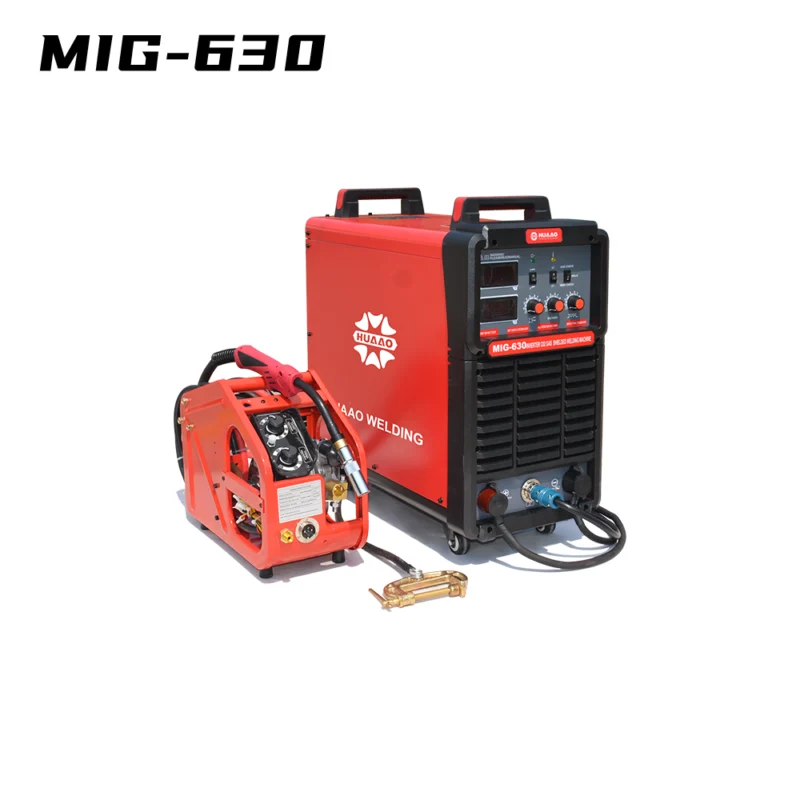

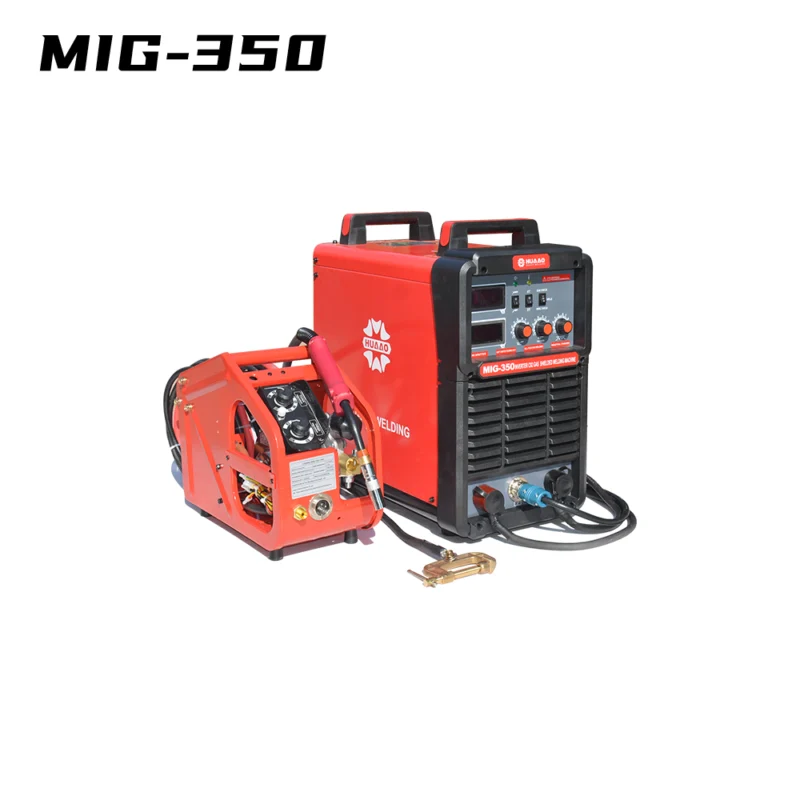

| Model | MIG-350 | MIG-400 | MIG-500 | MIG-630 |
|---|---|---|---|---|
| Voltage range (V) | 3-Phase380±15% 50/60HZ | |||
| Rated input power (KVA) | 13.8 | 15.9 | 24.3 | 33 |
| Rated input current (A) | 22 | 27 | 39 | 55 |
| No-load voltage (V) | 78 | 80 | 87 | 87 |
| Current adjustment range (A) | 60-350 | 60-400 | 60-500 | 60-630 |
| Voltage adjustment range (V) | 15.7-31.5 | 15.7-31.5 | 15.7-39 | 15.7-44 |
| Wire feeding speed (m/min) | 18 | |||
| CO2 gas flow (L/min) | 15-20 | |||
| Weld stick (mm) | 0.8-1.2 | 0.8-1.2 | 0.8-1.6 | 0.8-1.6 |
| Rated load duration (%) | 60 | |||
| Weight (Kg) | 27 | 41 | 44 | |
| External dimensions (mm) | 540*310*560 | 602*325*670 | 680*325*670 | |
| Remark: 3~220V/415V/440V can be customized | ||||
