Technical Advantages
- Multiple Welding Processes to Meet Diverse Needs
Gas-shielded Welding (GMAW/MIG/MAG): Utilizes shielding gas for clean welds. Suitable for various metals and medium-thick plates.
Manual Metal Arc Welding (MMAW / “Stick”): Operator-handled for flexibility in complex environments and irregular workpieces.
Flux-Cored Arc Welding (FCAW): Combines gas and flux shielding for stable arc, high efficiency, and strong resistance to porosity. Often used in field operations and high-quality weld scenarios.
Lift TIG Welding (Lift Arc): Ideal for thin sheets and non-ferrous metals. Enables precise arc control, ensuring both aesthetic and strong welds.
- User-Centric Design for Efficient Operation
Separate/Synergic Control: “Separate” mode offers professional parameter adjustment, while “Synergic” mode intelligently matches parameters for effortless operation, even for beginners.
One-Touch Wire Diameter Selection: Choose the wire diameter (e.g., 0.8–1.6 mm) with a single button; the welder auto-optimizes feeding speed and voltage.
- Comprehensive Monitoring & Adjustment for Quality Assurance
- Gas/Wire Monitoring: Real-time detection of gas flow, purity, and wire feeding status to ensure smooth welding.
- 2T/4T Modes: 2T mode for spot welding and short seams; 4T mode for long seams and precise arc termination.
- Thin-Sheet Welding: Precision parameter and inductance control with low heat input to prevent deformation and burn-through.
Rapid Spot Welding: Engineered for high-efficiency production, achieving instantaneous welding with robust joint strength, ideal for batch operations.
Compatibility with 5/15 kg (11/33 lb) Spools: Reduces downtime for wire replacement, ensuring uninterrupted performance in large-scale production.
Technical Parameter

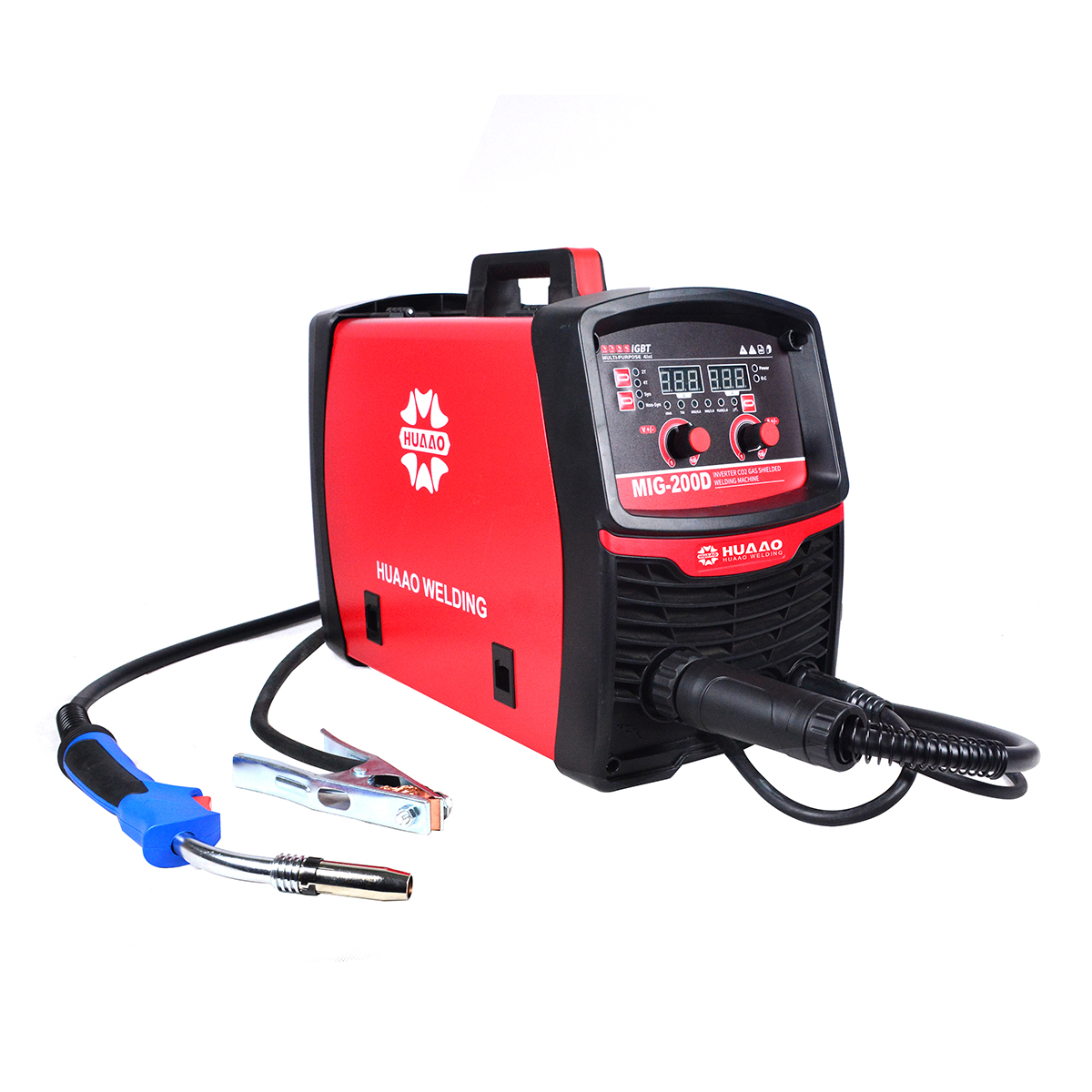

| Model | MIG-200D |
| Voltage range (V) | 1-Phase220±15% 50/60HZ |
| Rated input power (KVA) | 7.1 |
| Rated input current (A) | 45.5 |
| No-load voltage (V) | 55 |
| Welding current range(A) | 50-200 |
| Working voltage range (V) | 16.5-24 |
| Solid wire(mm) | 0.8 |
| Weld rod(mm) | 2.5-3.2 |
| Rated load duration (%) | 83 |
| Flux cored wire | 5/15 kg |
| Weight (kg) | 11.6 |
| Package dimensions(mm) | 57.7*34.2*50.5 |
| Gross Weight(kg) | 16.2 |
| Remark: 110V,127V,110/220V,127/220V can be customized | |

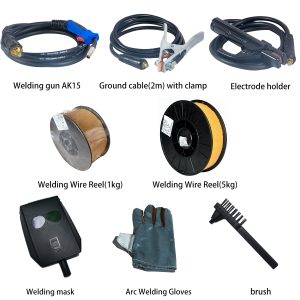

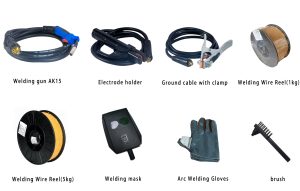

Product Accessories
