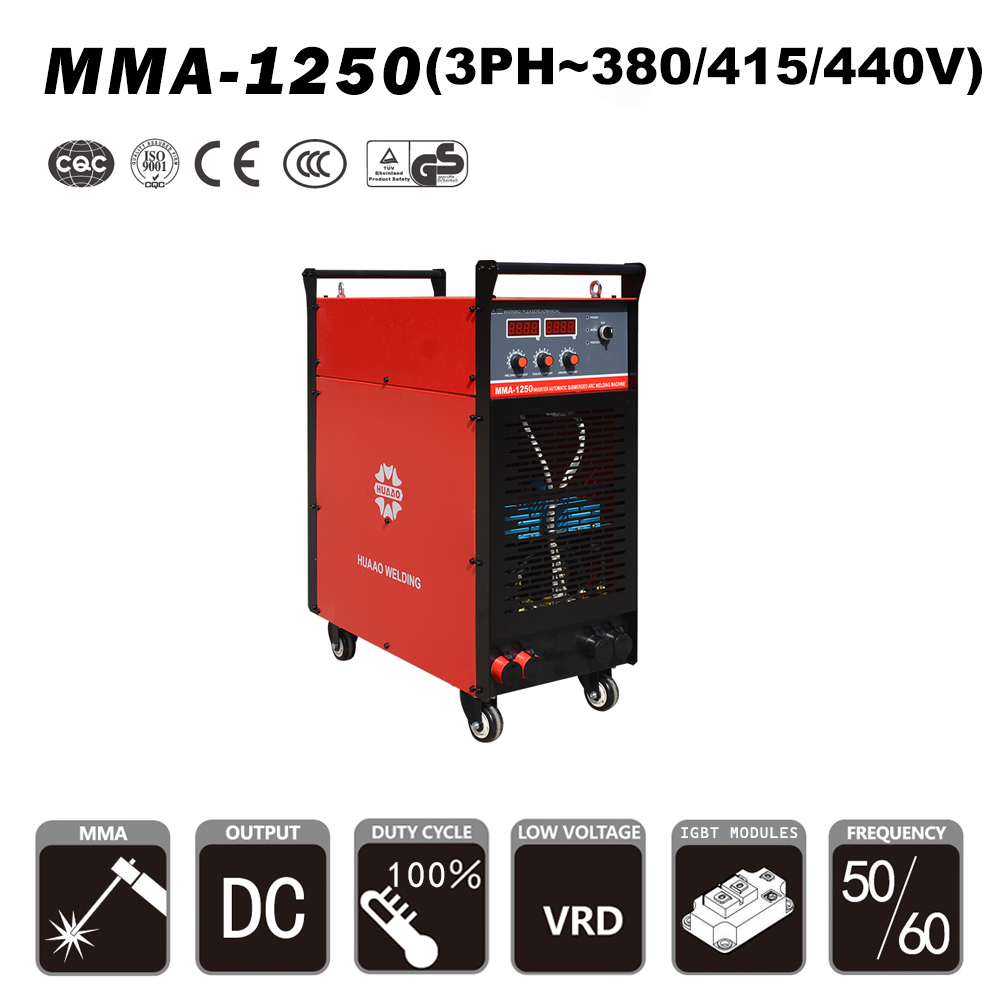

MMA 1250 – High Power Dual IGBT Industrial Welding Machine

Advanced soft-switching inverter with imported IGBT & microcrystalline core.
High duty cycle with arc thrust adjustment.
Auto-voltage compensation ensures stable arc, uniform melt pool, minimal spatter, and superior weld quality.
Vacuum-sealed PCB with imported insulating grease for dustproofing.
Isolated fan design for rain protection

Product Video

Model	MMA-1250
Voltage range (V)	3~380±15%
Frequency(HZ)	50/60HZ
Rated input power (KVA)	60
Rated input current (A)	94
No-load voltage (V)	75
Working current range(A)	60-1250
Thrust current range (A)	60-320
Arc start current adjustment range(A)	20-100
Rated duty cycle (%)	100
Weld stick (mm)	2.0-6.0
Weight (Kg)	108
External dimensions (mm)	804375920
Remark: 3~220V/415V/440V can be customized
