Production Video
Technical Advantages
- Using single-tube IGBT high-frequency inverter technology, the output power is large, stable and reliable.
- Wire detection function, dry extension length 20mm, easy to start arcing.
- Current/voltage digital display preset function, easy to match welding parameters.
- Gas shielded welding(flux cored welding/TIG/MIG)/Stick welding two-purpose function setting, constant current/ constant voltage output.
- Arc hardness adjustment, suitable for different materials and process requirement.
- Application of leading anti-plash control circuit, small spatter, uniform shape.beautiful appearance .
- Good arc ignition reliability, especially suitable for fast spot welding.
- Stable welding with fine wire and small current especially suitable for thin sheet welding, the thinnest 0.5mm no breakdown.
- Excellent spot welding performance for 0.8 welding wire sheet.
- Digital operation interface, intuitive and convenient operation.
Technical Parameter
| Model | MIG 285B |
| Input Voltage(V) | 1phase 220V±15% |
| Frequency(HZ) | 50/60HZ |
| Rated input power (KVA) | 3.6 |
| Rated input current (A) | 29 |
| No-load voltage (V) | 55 |
| Output current range (A) | MMA: 50-140 MIG: 50-140 |
| Working voltage range(V) | 16.5-21 |
| Welding wire (mm) | 0.8-1.0 |
| Welding rod (mm) | 2.0-3.2 |
| Rated load duration (%) | 40% |
| Flux cored wire | 1 kg / 5 kg |
| Weight (Kg) | 6.7 |
| External dimensions (mm) | 460*220*290 |

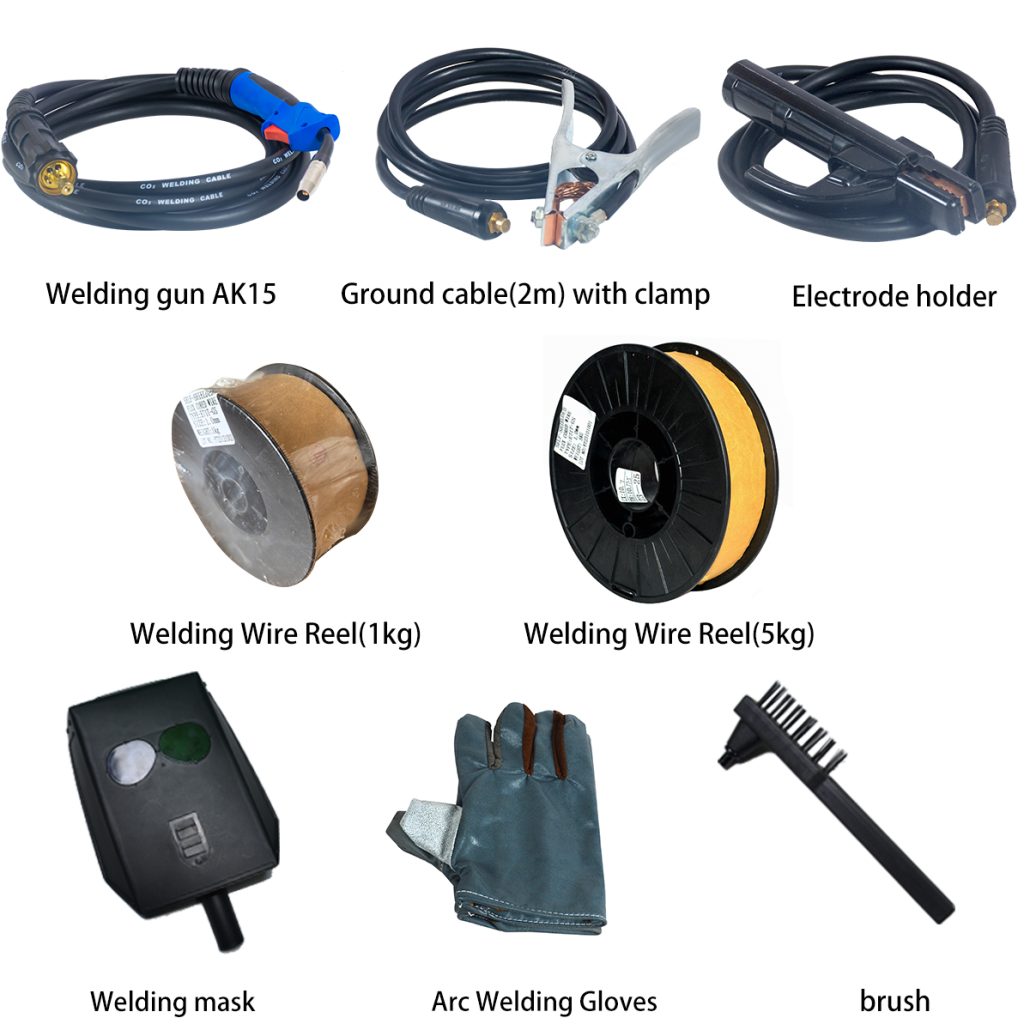

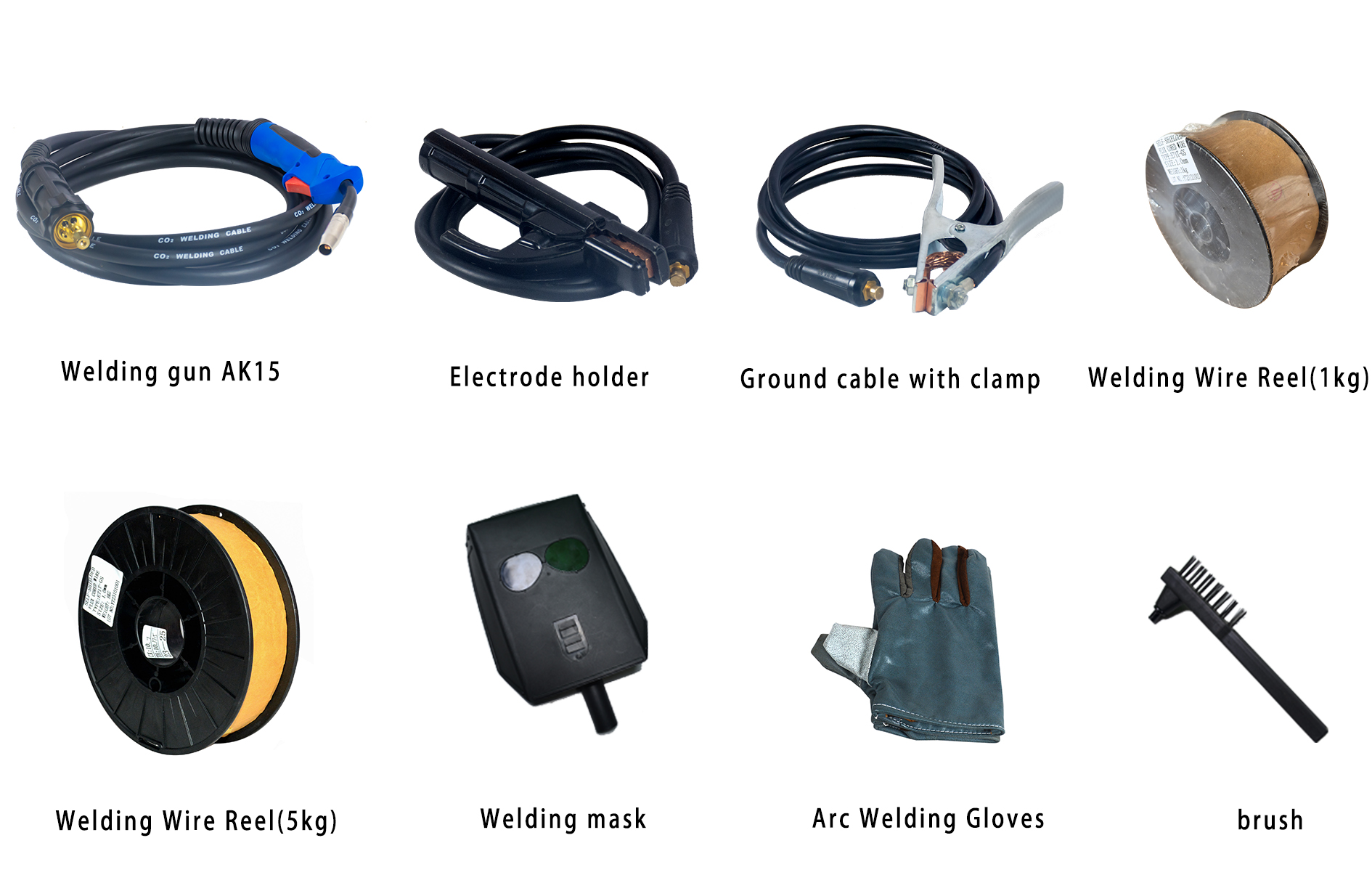

Product Accessories
