Technical Advantages
- Digital operation panel, double-knob operation, welding parameters and operation function settings are more intuitive and diversified.
- Adopt a reasonable combination of all-digital dual-CPU control technology and soft-switching IGBT inverter technology to achieve good welding performance.
- Through the modification and upgrading of the control software, it can quickly respond to the customer’s special welding process requirements.
- Instantaneous arc ignition circuit, no spatter when starting arc, automatic arc closing program, keep the end of welding wire sharp, instantaneous arc ignition rate 100%.
- The arc length changes with the distance between the welding torch and the workpiece, and the arc shape can be adjusted freely, which is suitable for all-position welding.
- AC frequency stepless adjustment, the higher the frequency, the higher the arc stiffness, making the control of thin plate and ring welding easier.
- Fully unified adjustment, 2T/4T selection function.
- Four-drive wire feeding system suitable for long-distance operations and harsh environments, with a 5-meter welding torch, wire feeding without hindrance.
- Ten-channel storage database, single-pulse, double-pulse function, truly realize one pulse, one melting point, no spatter, suitable for high-quality welding of non-ferrous metals such as aluminum alloy, stainless steel, copper, low carbon steel, etc.
Technical Parameter

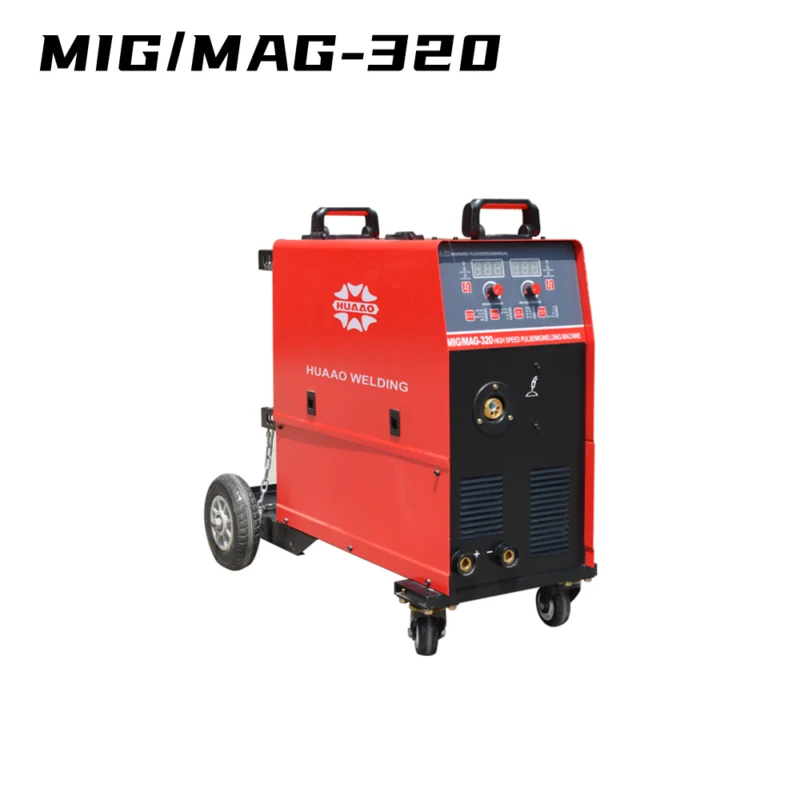

| Model | MIG/MAG-320 | MIG/MAG-500 |
|---|---|---|
| Voltage range (V) | 3-Phase380±15% | |
| Frequency(HZ) | 50/60HZ | |
| Rated input power (KVA) | 11.5 | 24.5 |
| Rated input current (A) | 19 | 39 |
| No-load voltage (V) | 66 | |
| Working current range (A) | 50-320 | 20-500 |
| Working voltage range (V) | 16.5-30 | 15.7-39 |
| Wire feeding speed (m/min) | 18 | |
| Efficiency(%) | 80 | |
| Power factor | 0.89 | |
| Rated duty cycle (%) | 60 | |
| Weight (Kg) | 45 | 67.5 |
| External dimensions (mm) | 870*460*750 | 915*600*1216 |
| Remark: 3~220V/415V/440V can be customized | ||
