Technical Advantages
- Single-module IGBT HF inverter: high-power, stable, reliable output
- Wire detection function, dry extension length 20mm, easy to start arcing.
- Current/Voltage digital display preset function, easy to match welding parameters.
- Flux cored welding/Gas shielded welding/Stick welding/LIFT TIG 4-in-1 function setting.
- Built-in hand welding VRD anti-shock function,constant current/constant voltage output..
- Arc hardness adjustment, suitable for different materials and process requirements.
- Applying leading anti-splash control circuit, the splash is small, the molding is uniform and beautiful.
- Good arc ignition reliability, suitable for fast spot welding.
- Especially suitable for thin plate welding, the thinnest 0.5mm does not wear.
- 0.8mm Welding stick sheet has excellent spot welding performance.
Technical Parameter

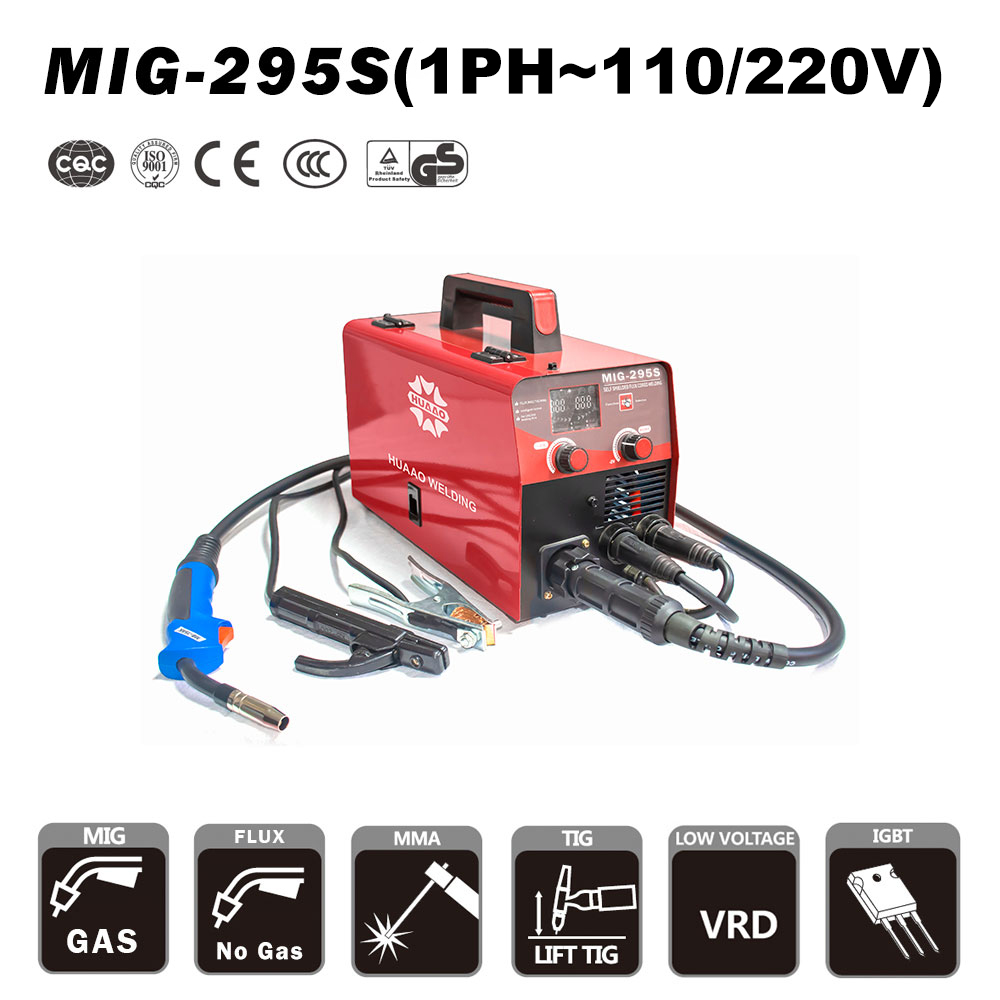

| Model | MIG-295S |
| Voltage range (V) | 1Ph~110/220V±15% |
| Frequency(HZ) | 50/60HZ |
| Rated input power (KVA) | 4.1 |
| Rated input current (A) | 31 |
| No-load voltage (V) | 55 |
| Welding current range (A) | 50-160 |
| Working voltage range(V) | 16.5-22 |
| Weld stick (mm) | 0.8-1.0 |
| Welding rod (mm) | 2.0-3.2 |
| Rated load duration (%) | 40 |
| Weight (Kg) | 6.7 |
| External dimensions (mm) | 460*230*290 |
| Functions | FCAW, MIG, MMA, LIFT TIG |
