Technical Advantages
- The output characteristic closely resemble those of a AC welder,offering excellent arc stiffness and improved droplet transfer during welding.
- Excellent for overhead,vertical and 360°all-position welding with electrode 427/506/507.
- Thrust current continuously from 0 to 100A, significantly improving deposition rates for alkaline electrode.
- 90A root welding, free arc direction control,even pesentration, and reduced operator requirement.
- 60%duty cycle delivering high-current long-duration and ultra-reliable performance even in 40°C high-temperature environment.
Technical Parameter

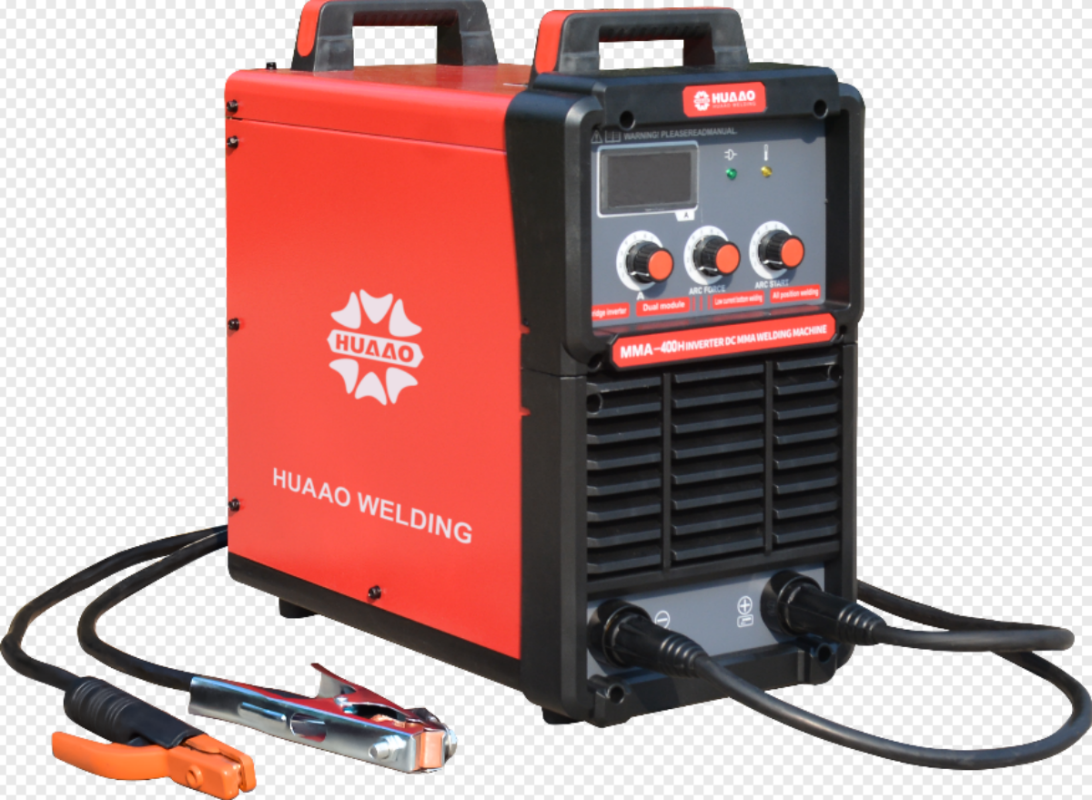

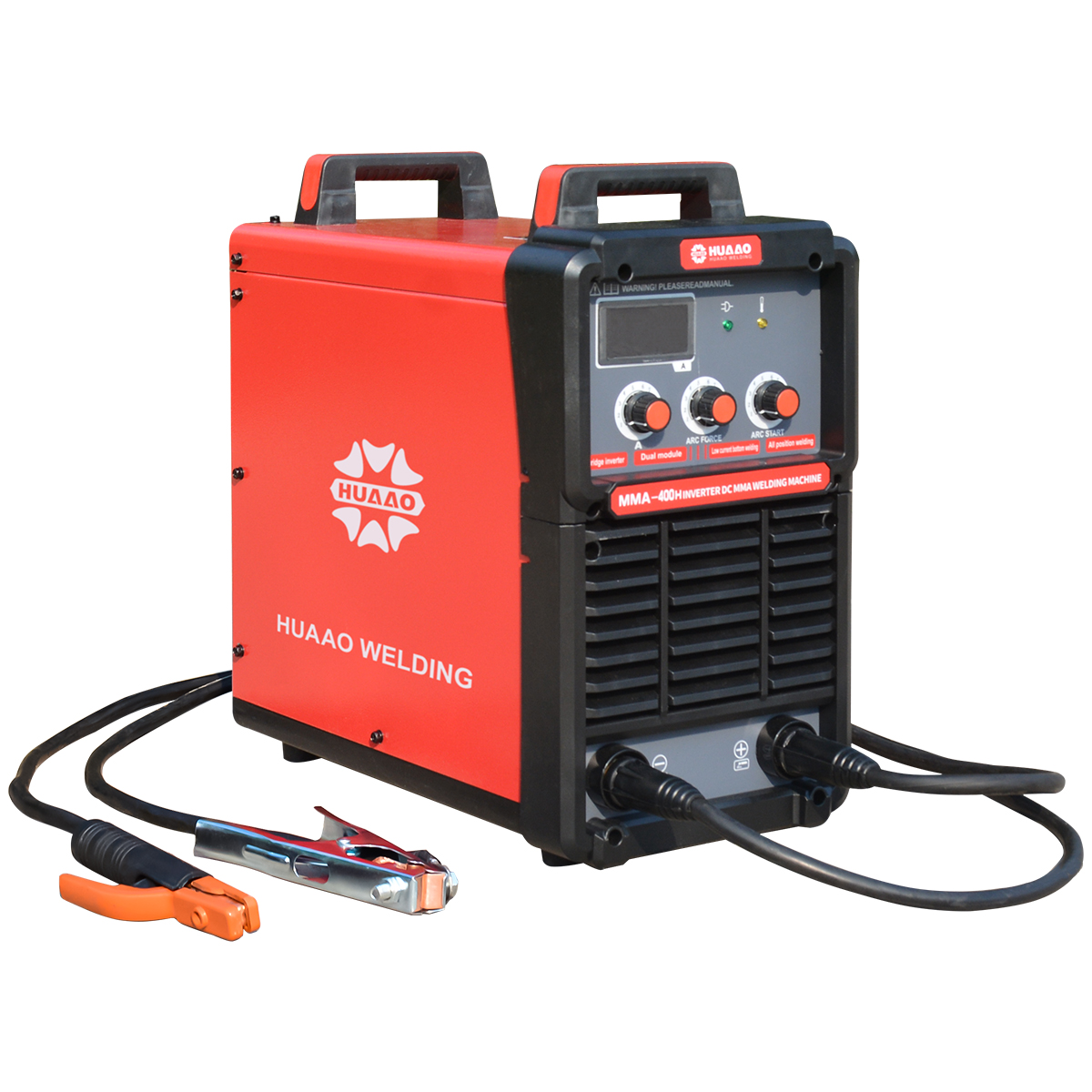

| Model | MMA-400 |
| Voltage range (V) | 1 phase 380V±15% |
| Frequency(HZ) | 50/60HZ |
| Rated input power (KVA) | 20 |
| Rated input current (A) | 27 |
| No-load voltage (V) | 75 |
| Working current range(A) | 20-400 |
| Weld stick (mm) | 2.0-6.0 |
| Rated duty cycle (%) | 80 |
| Weight (Kg) | 19.2 |
| External dimensions (mm) | 480*255*450 |
| Remark: 3 phase 220V/415V/440V can be customized | |
