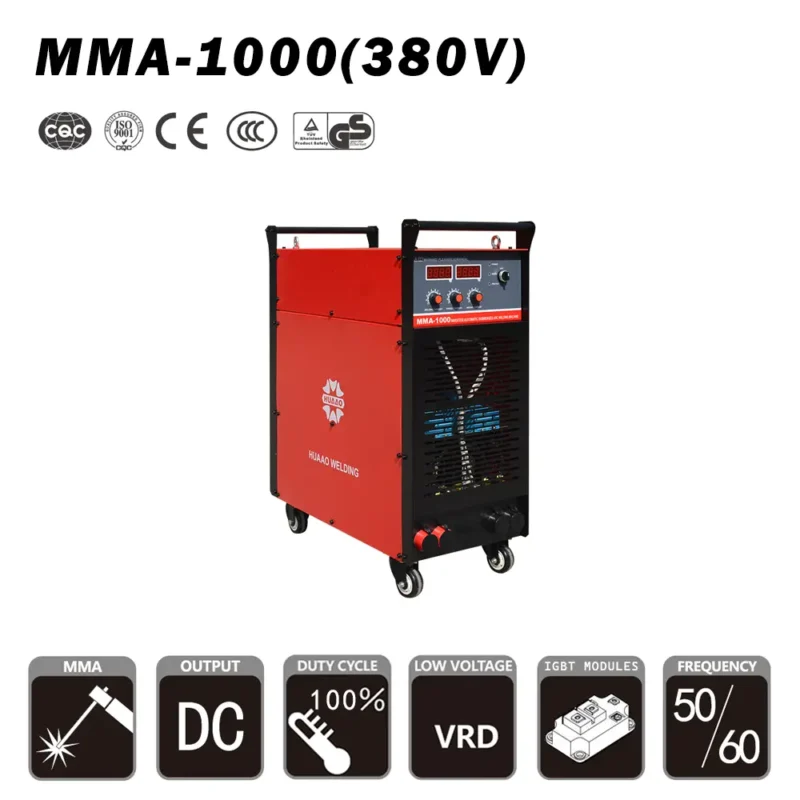

MMA 1000 – High Power Dual IGBT 380V Industrial Welding Machine

Adopting advanced soft-switching inverter technology, with imported lGBT and microcrystalline magnetic core as the core parts.
High load duration, with arcing current and current thrust adjustment function
It has the function of automatic compensation for voltage fluctuation, stable arc, uniform melt pool, less spatter, and beautiful weld seam.
The circuit board adopts imported insulating grease QC glue and vacuum sealing to prevent dust.
The fan adopts an isolated structure to prevent rainwater from entering.

Production Video

Voltage range (V)	3 phase 380V±15%
Frequency(HZ)	50/60HZ
Rated input power (KVA)	58
Rated input current (A)	90
No-load voltage (V)	75
Working current range(A)	60-1000
Thrust current range (A)	60-250
Arc start current adjustment range(A)	20-100
Rated duty cycle (%)	100
Weld stick (mm)	2.0-6.0
Weight (Kg)	102
External dimensions (mm)	804375920

Remark: 3 phase 220V/415V/440V can be customized
